Diaphragm Wall Design in Bradford – Geotechnical Solutions for Deep Excavations

In Bradford, diaphragm wall design must comply with Eurocode 7 (EN 1997-1:2004) and BS EN 1997-2 for ground investigation. The city’s underlying geology — Millstone Grit overlain by glacial till and alluvial deposits along the Bradford Beck valley — creates variable conditions for deep excavations. Our team integrates site-specific data from calicatas exploratorias and ensayo SPT to define shear strength and stiffness profiles. This ensures that wall thickness, reinforcement, and construction method are tailored to the actual ground behaviour, not generic assumptions.

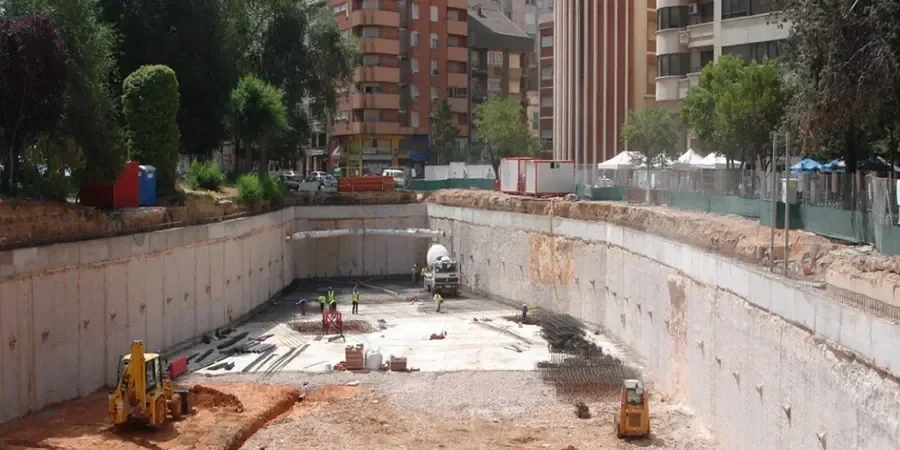

Illustrative image of Diaphragm wall design in Bradford
In Bradford’s glacial till, a 1m thick diaphragm wall at 15m depth typically requires reinforcement of 80-120 kg/m³ depending on lateral earth pressures and serviceability limits.

Method and coverage

Comparing the city centre near Forster Square with the slopes of Heaton or Manningham reveals stark differences in soil behaviour. In the centre, stiff glacial till provides reasonable stand-up time and moderate basal heave risk. But in Manningham, where the ground transitions to weathered sandstone and clay lenses, diaphragm wall design needs a different approach. Here we rely on ensayo CPT for continuous cone resistance profiles and presurometro to measure in-situ lateral stiffness. These tests help us calibrate the wall-soil interaction model and predict excavation-induced movements in narrow urban streets like those around the Alhambra Theatre.

Regional considerations

Bradford sits at around 130 m above sea level, but its topography drops sharply into several valleys. This leads to localised groundwater flows and perched water tables that can destabilise a trench during diaphragm wall construction. The 2015 Boxing Day floods reminded everyone how quickly water can accumulate in the Beck catchment. Without a proper hydrogeological study, a sudden rise in pore pressure can collapse the slurry-supported trench face. Our diaphragm wall design always includes a groundwater monitoring plan and contingency for dewatering, especially in the alluvial corridors near the city centre.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Standards that apply


Eurocode 7 (EN 1997-1:2004) – Geotechnical design, BS EN 1538:2010 – Execution of diaphragm walls, CIRIA C760 – Guidance on embedded retaining walls, BS 5930:2015 – Code of practice for ground investigations

Complementary services

01

Geotechnical parameter selection for wall design

We interpret borehole and in-situ test data to derive characteristic values of undrained shear strength, friction angle, and stiffness modulus. This forms the basis for calculating active and passive earth pressures, wall embedment, and structural forces.

02

Structural wall design and reinforcement detailing

Using limit state design to Eurocode 2 and 7, we calculate bending moments, shear forces, and crack widths. We provide detailed reinforcement schedules and construction joints, optimising steel content without compromising safety.

03

Temporary works and construction sequence planning

We design the excavation sequence, propping levels, and tie-back anchors where needed. Our team considers the impact on adjacent structures and utilities, common in Bradford’s dense urban areas like the Broadway shopping district.

Typical parameters


ParameterTypical value
Wall thickness range0.6 – 1.2 m
Maximum unsupported excavation height6 – 8 m
Concrete strength classC30/37 to C40/50
Reinforcement ratio0.5 – 1.2 %
Allowable lateral deflectionH/300 – H/500
Trench stability fluidBentonite or polymer slurry

Top questions

How does diaphragm wall design differ in Bradford compared to London clay?

Bradford’s glacial till has higher stiffness but more variability than London clay. The presence of sandstone bands and perched water requires careful joint detailing and slurry management. We also see higher lateral earth pressures due to the sloping topography, which affects wall embedment depth and reinforcement design.

What is the typical cost range for diaphragm wall design in Bradford?

For a typical project in Bradford, the design and geotechnical interpretation fee ranges between £1,400 and £5,580. This depends on wall length, depth, number of load cases, and whether a 3D finite element analysis is needed. We always provide a fixed-price proposal after reviewing the ground investigation data.

Do you consider seismic loading in diaphragm wall design for Bradford?

Seismic loading is not typically critical in West Yorkshire due to low seismicity, but we check it per Eurocode 8. For sensitive structures like hospitals or high-rise towers, we assess dynamic earth pressures and liquefaction potential of the alluvial sands. In most cases, the static design governs, but we document the seismic check for completeness.
